Hook / Sleeve Type Metal Bellows Seals
Our Products
Construction
| Bellows: | AM350, Inconel 718, Haste Alloy C-276 |
| Secondary Seal: | Grafoil |
| Seal Face: | Metallic Carbon, SIC, SSIC(alpha), Tungsten graphite |
| face holder | 17-4ph, Carpenter-42, Alloy-20, Duplex |
| Adaptor/Dry collar: | SS 316L, Alloy 20, Inconel 718, Duplex |

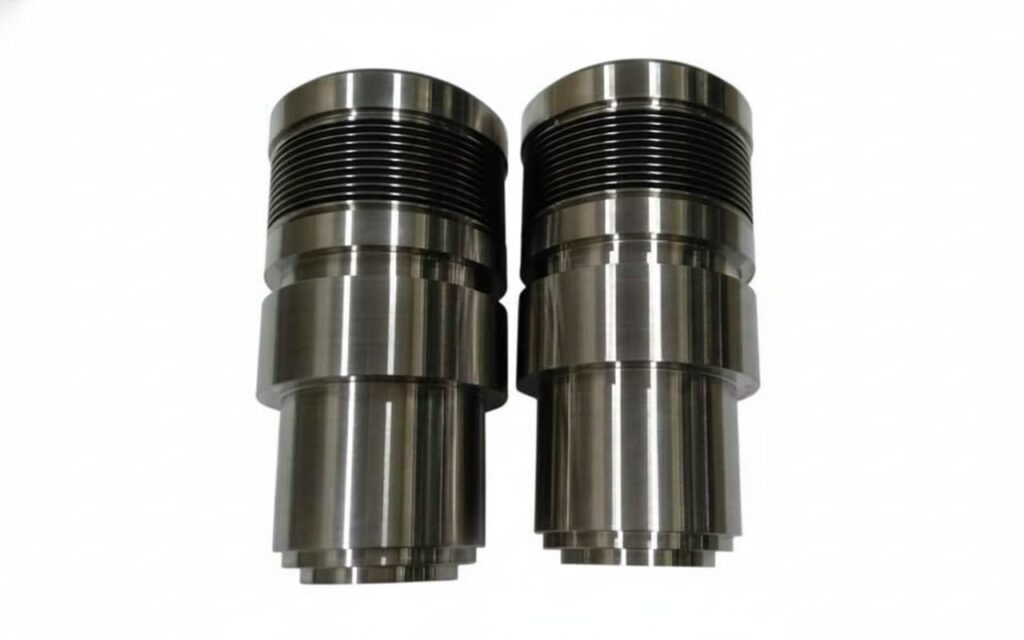

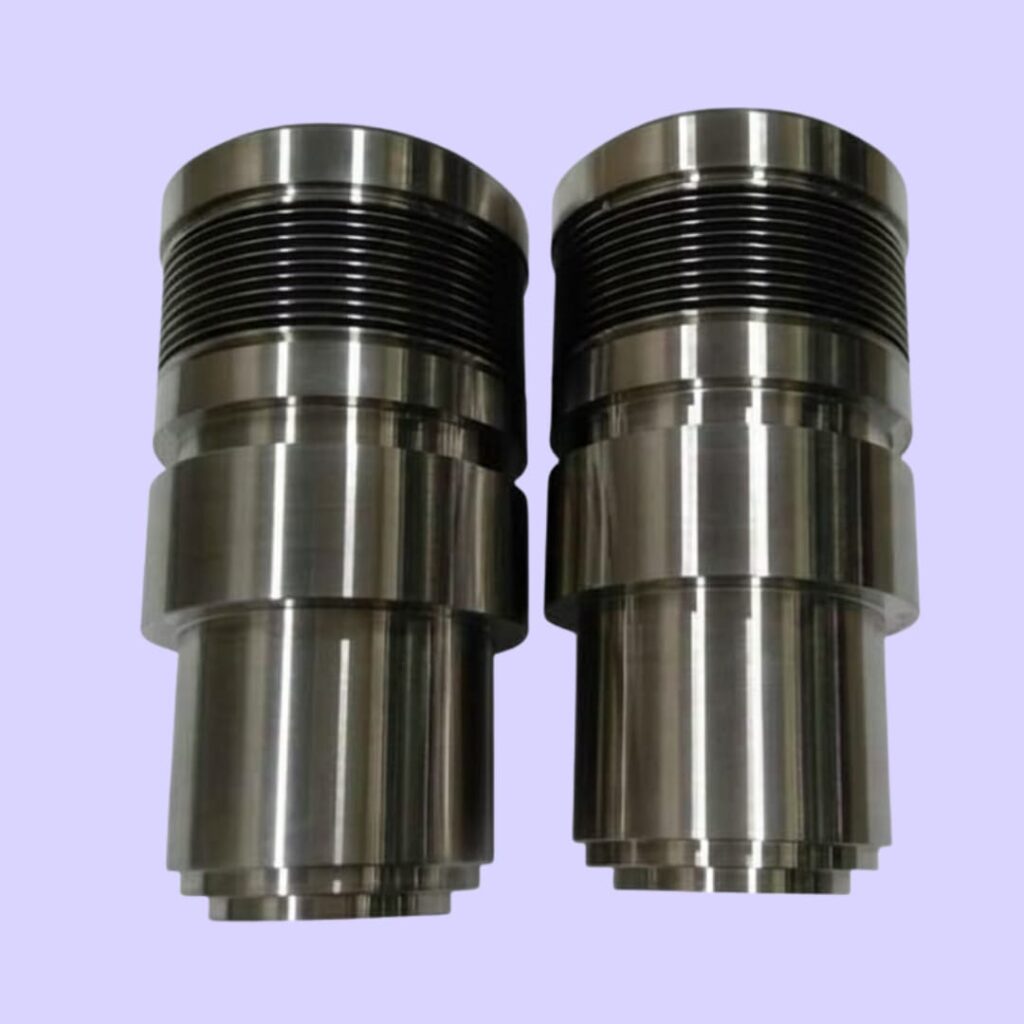

The Hook / Sleeve type metal bellow seal is a semi-cartridge or cartridge-adaptable seal where the sleeve/hook assembly provides the primary drive and support for the bellows.
This enables easy installation, good alignment, and better handling of mechanical loads.
These seals are mostly use in KSB and Jhonson pumps, requiring robustness under high temperature, varying pressure, or when maintenance and installation ease are priorities.
If the listed constructing material listed below is not the one you are looking for, please contact us to see whether we can accommodate your needs.
Operating
| Characteristic | Description/Value |
|---|---|
| Temperatures: | Upto 400°C : AM350 |
| Above 400°C: Haste Alloy C-276 & INCONEL-718 | |
| Pressure: | Up to ~ 10 bar (can be more in special constructions) |
| Speed: | Depends on face material & size; often several thousand RPMs |
*Note: These operating limits are non-concurrent. Increasing one factor can reduce the maximum limit of another.
