VACCUM PUMP SEAL
Our Products
Construction
| Bellows: | AM350, Inconel 718, Haste Alloy C-276 |
| Secondary Seal: | Grafoil, O-ring |
| Seal Face: | Metallic Carbon, SIC, SSIC(alpha), Tungsten graphite |
| face holder | 17-4ph, Carpenter-42, Alloy-20, Duplex |
| Adaptor/Dry collar: | SS 316L, Alloy 20, Inconel 718, Duplex |

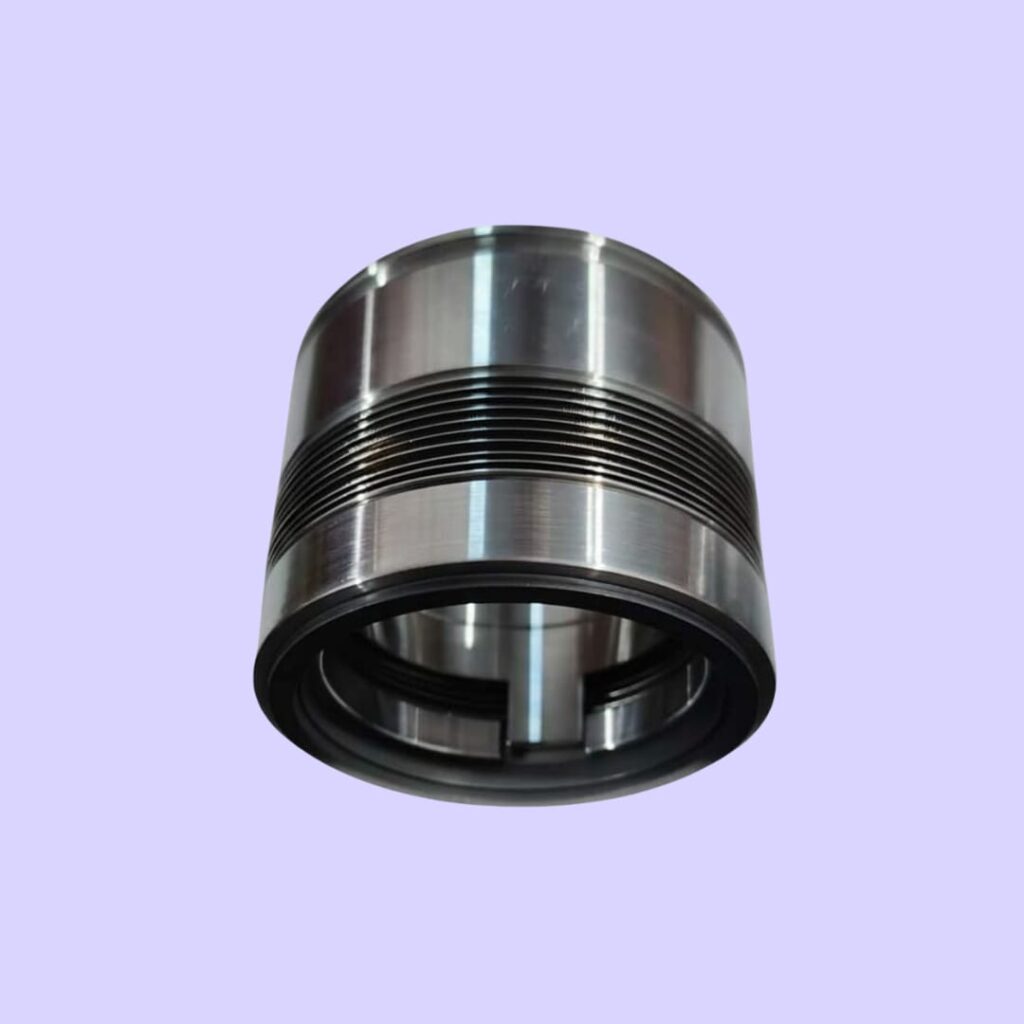

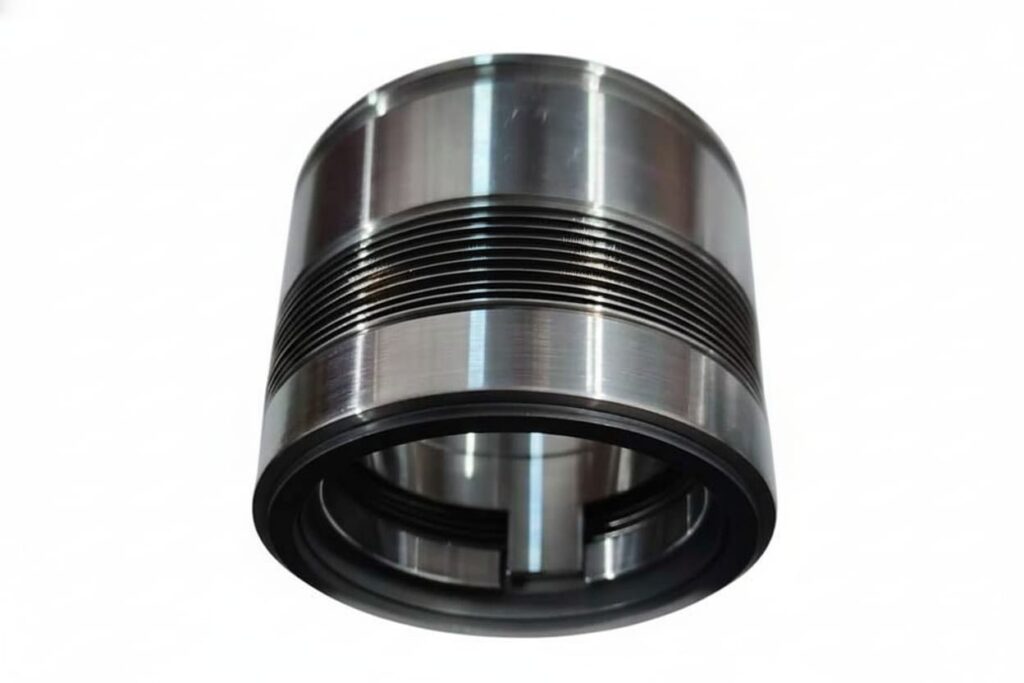

A metal bellow seal designed specifically for vacuum pump service. It uses welded metal bellows to accommodate shaft movement and temperature/pressure changes while maintaining a tight seal against vacuum and low-pressure environments.
Ideal for pumps used in vacuum applications where leakage is not acceptable, and reliability under pressure differential is critical.
If the listed constructing material listed below is not the one you are looking for, please contact us to see whether we can accommodate your needs.
Operating
| Temperatures: | upto 400° : AM350 |
| Above 400°: Haste Alloy C-276 & INCONEL-718 | |
| Pressure: | Under 10kg/Up to 9.8bar: Single Ply |
| Above 10kg/Up to 29.4bar: Double Ply | |
| Speed: | Up to 5000 rpm or 25 m/s |
* These operating limits are non-concurrent. In general, an incease in the seal size, or temperature, or rotating speed can reduce the maximum operating pressure limit of the metal bellow component.
